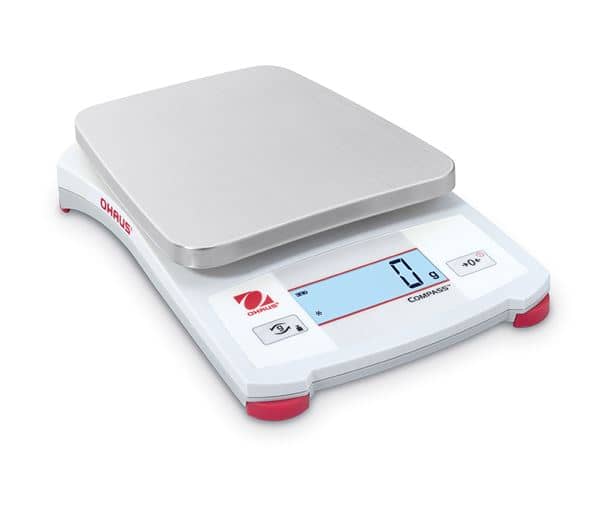

Energy-Efficient Portable Scale Suitable for Workplace and In-the-Field Weighing

Designed with energy efficiency in mind, the Compass CX series offers a battery life of up to 1,000 continuous hours, allowing for uninterrupted operation. Featuring a slim, stackable and light-weight design, the CX fits ideally in lab, industrial, education, and even household settings. The streamlined two-button operation means that the balance can be operated easily, and large backlit LCD display enables easy viewing of weighing results.

Standard Features:

  • Save money over the lifetime of the balance. Alkaline batteries allow you to maximize operating time with up to 1,000 hours of continuous energy efficient weighing in the workplace or classroom.
  • Large backlit display increases readability in low-light conditions and makes it easier to view results from a distance.
  • Slim, space-saving design allows for stackable storage for up to four scales.

Additional information

Capacity (g)


Readability (g)


Span Calibration Mass (Not Included)

200 g/500 g/1 kg/2 kg

Stabilization Time (s)



ABS housing and stainless steel pan

Calibration User

User-selectable external span / Digital with external weight

Tare Range

Full capacity by subtraction

Weighing Units*

g, ozt, dwt, lb:oz

Application Modes


Power Requirement

3 AA batteries (included) or AC adapter (not included)

Typical Battery Life

1,000 hours

Display Type

Liquid crystal display (LCD)

Display Size

18 mm digits

Pan Size (W × D)

128 × 142 mm

Balance Dimensions (W × D × H)

135 × 201 × 41 mm

Shipping Dimensions (W x D × H)

170 × 235 × 55 mm

Net Weight

0.5 kg
