Designed with affordability in mind, but with no compromise on quality!

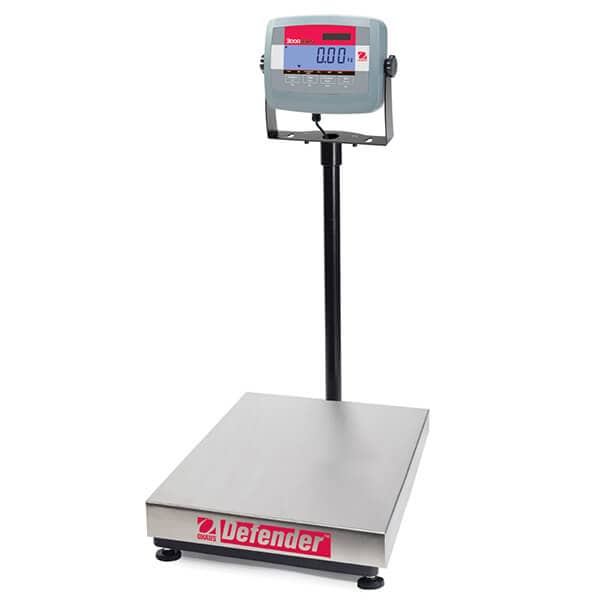

The OHAUS Defender 3000 Xtreme Series economy line of bench scales is ideal for general weighing and simple counting applications in wet or damp environments. The Defender 3000 Xtreme Series feature a simple, rugged tubular stainless steel base protected to NEMA 4X/IP65, with overload stops and durable stainless steel pan. The Defender 3000 Xtreme Series is the solution to your weighing applications that require dependability within an affordable budget.

Standard Features Include:

  • Default resolution 1:6000 to 7500d; NTEP certified and Measurement Canada approved to 3,000e.
  • 304 stainless steel pan with stainless steel frame and stainless steel IP67 load cell
  • Indicator features a stainless steel housing with NEMA 4X / IP65 protection
  • Adjustable non-slip rubber leveling feet with externally visible level indicator
  • Multiple weighing units: lb, oz, lb:oz, kg, g (depending on model)
  • Parts counting mode with selectable sample sizes, last sample size and average piece weight data
  • 1-in/25mm high LCD weight display with high-contrast backlight
  • Built-in RS232 for printing and data connection
  • Internal universal switching power supply and 58-hour internal rechargeable battery included
Category:
Ohaus MC2000
Endel EPSS Series Heavy Duty Floor Scale

Additional information

Capacity x Readability (d)

33 lb × 0.005 lb
5,28 oz × 0.1 oz
15 kg × 0.002 kg
15,000 g × 2 g
Capacity x Readability (d) (Cal unit lb)

30 lb × 0.005 lb
4,80 oz × 0.1 oz
30 lb × 0.1 oz (lb:oz)
13.6 kg × 0.002 kg
13,600 g × 2 g
Capacity x Readability approved (e) (Cal unit lb)

30 lb × 0.01 lb
4,80 oz × 0.2 oz
Displayed Resolution

1:3000
Displayed/Approved Resolution

1:6000d/1:3000e depending on capacity/readability
Platform Dimensions (W × D × min H)

12 × 14 × 4.8 in / 305 × 355 × 123 mm
Front View Dimensions (F1 × F2 × F3 × F4 × F5 × F6)

8.2 × 6.5 × 12 × 4.8 × 3 × 10 in
210 × 166 × 305 × 119 × 75 × 256 mm
Side View Dimensions (S1 × S2 × S3 × S4 × S5)

22.5 × 18.6 × 14 × 12 × 2 in
572 × 472 × 355 × 306 × 52 mm
Column

13.8 in / 350 mm fixed height, stainless steel
Safe Overload Capacity

125% of rated capacity
Functions

Weighing, Parts Counting
Weight Display

6-digit, 7-segment backlit LCD, 1 inch / 25 mm high digits
Keyboard

4 function mechanical keys, raised, tactile
Stabilization Time

Within 2 seconds
Auto-zero Tracking

Off, 0.5, 1 or 3 divisions
Key Zeroing Range

2% or 100% of capacity
Span Calibration

5 lb/kg to 100% of capacity, user selectable
Power

100 – 240 VAC/50-60 Hz internal switching power supply with internal rechargeable sealed lead-acid battery (58-hour typical operation with full charge)
Interface

Bidirectional RS232C
Operating Temperature Range

14°F to 104°F / -10°C to 40°C, Maximum relative humidity 80 % for temperatures up to 88°F / 31°C,
decreasing linearly to 50 % relative humidity at 104°F / 40°C, non condensing
Net Weight

33 lb / 15 kg
